HPORTEK / Vector Network Analyzers

SYVNA-2P-T67GDual-Port Vector Network Analyzer

The SYVNA-2P-T67G is a low-cost, high-performance, compact bench-top dual-port VNA covering 100 MHz to 67 GHz, with open interfaces for secondary development.

HPORTEK / Signal Generators

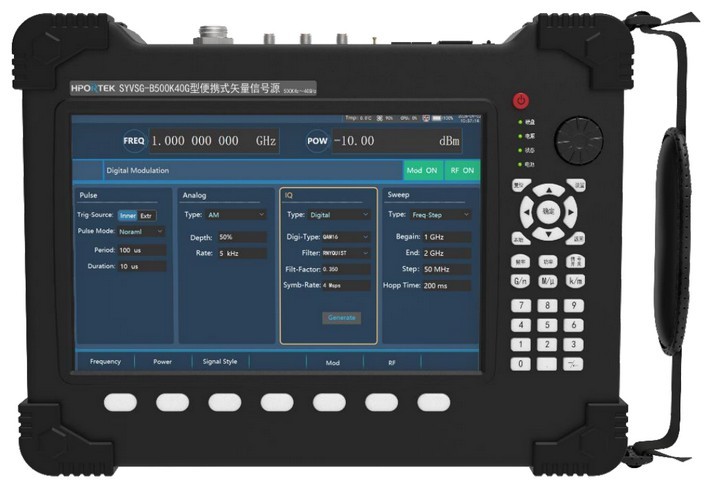

SYVSG-B500K40GPortable Vector Signal Generator

Portable Vector Signal Generator · 500 kHz–40 GHz. For communications and laboratory signal generation, with multiple modulation formats, external power and battery operation.

HPORTEK / EMC Power Amplifiers

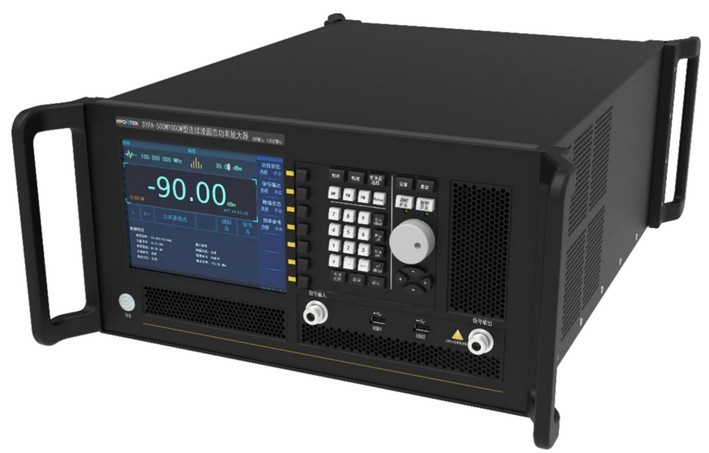

SYPA-500W1000MCW Solid-State Power Amplifier

The SYPA-500 W is a solid-state, air-cooled wideband power amplifier for applications requiring wide instantaneous bandwidth, high gain, and linearity. It can be rack-mounted in a 19-inch standard cabinet or used as a bench-top instrument. It delivers at least 500 W of RF output power. The operator can adjust gain via the front panel. When RF input exceeds 0 dBm, the LNA power is shut off for protection. Over-temperature conditions trigger power-down to protect the amplifier. It features a color LCD touchscreen and physical buttons, displaying operational and fault status. Local and remote control are available via GPIB, USB, and Ethernet.

HPORTEK / Microwave Modules

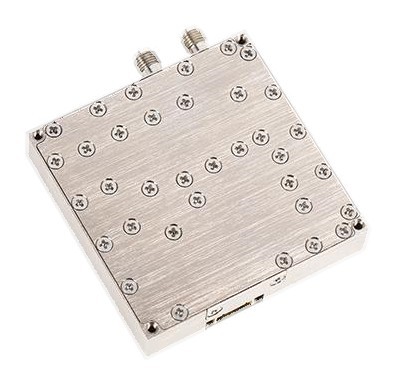

KA-FREQ-SYNTH-CARDKa-Band Frequency Synthesizer Card

Ka-Band Frequency Synthesizer Card. For communications testing, electronic measurement and laboratory signal-chain integration. Contact engineering to discuss the frequency band, interfaces and project-specific configuration.

HPORTEK / High-Speed Acquisition & Processing Boards

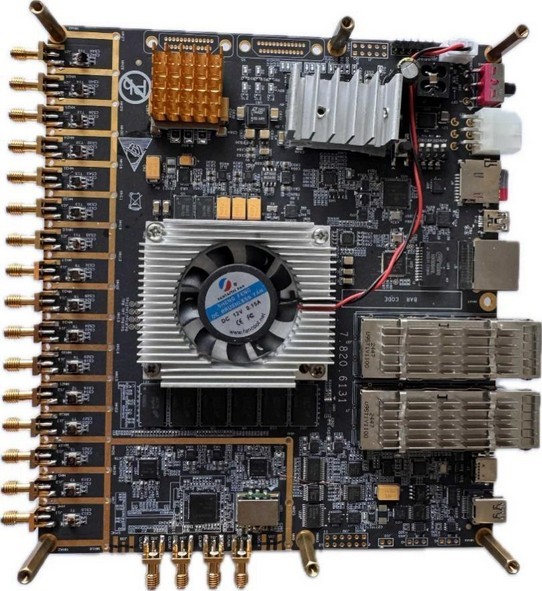

SYHS-8R8T-2GWideband RF Transceiver Board

The SYHS-8R8T-2G is a wideband RF transceiver board based on the ZU47DR RFSoC, with 8 RX and 8 TX channels and up to 2 GHz instantaneous bandwidth per channel. It integrates high-speed RF-ADC/RF-DAC, UltraScale+ FPGA logic, and ARM processing for wideband acquisition, real-time arbitrary waveform generation, and on-chip DSP. The board uses optical interfaces for high-speed, low-latency bidirectional data transfer, supporting external reference clock and trigger synchronization with multi-board cascade capability.
